Custom instrumentation for Ruby

In order to find out what specific pieces of code are causing performance problems it’s useful to add custom instrumentation to your application. This allows us to create better breakdowns of which code runs slowest and what type of action was the most time spent on.

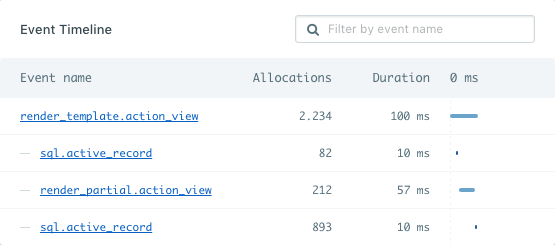

When you view saved traces of slow requests in AppSignal you’ll be able to see all the instrumentation your application uses internally. Template rendering, ActiveRecord queries and caching are instrumented and will be shown in the trace.

That’s already very useful, but wouldn’t it be great if we could see measurements of specific pieces of code you suspect might influence your performance? Well, you can!

By adding custom instrumentation, you can create more detailed breakdowns of a request or background job. You can instrument your code with the AppSignal instrumentation helpers, or with a notification library that AppSignal reads. Rails applications use ActiveSupport Notifications, and dry-rb applications use Dry::Monitor notifications.

Note: Make sure you’ve integrated AppSignal before adding custom instrumentation to your application if it’s not automatically integrated by one of our supported integrations. Follow our instrumentation for scripts and background jobs guide for applications that we don’t automatically instrument.

Note: This page only describes how to add performance instrumentation to your code. To track errors please read our exception handling guide.

Instrumentation helpers

When you add custom instrumentation to your code you’ll be able to receive even more insights into your application. For example, you have to work with an external API that fetches articles for your homepage:

Ruby

class ArticleFetcher
  def self.fetch(category)
    Appsignal.instrument('fetch.article_fetcher') do
      # Download and process the articles
    end
  end
end

ArticleFetcher.fetch('Latest news')

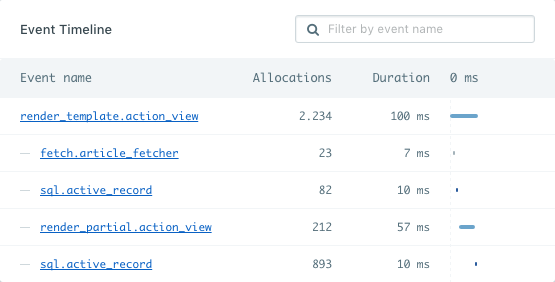

Once you add custom instruments like this AppSignal will start picking them up and will show you how much time both an event group (article_fetcher in this case) and individual events took.

In this case you’ll notice that this API call is a huge influence on the performance of our homepage, which was hidden before. We might want to consider caching the articles.

Note: The name of the event you’re instrumenting is important for our processor. Read more about event naming.

Note: When AppSignal reports to the AppSignal Collector, these helpers take extra arguments that describe the event as an OpenTelemetry span. Read more about AppSignal for Ruby and OpenTelemetry.

Nesting instrumentation

You can use as many instruments in any combination you like. You can nest instrument calls and AppSignal will handle the nesting and aggregates of the measurements nicely. You just have to keep the final segment (after the last dot) of the key consistent.

Ruby

Appsignal.instrument('fetch.article_fetcher') do
  10.times do
    Appsignal.instrument('fetch_single_article.article_fetcher') do
      # Fetch single article
    end
  end
end

Collecting more data per event

By default AppSignal will collect the duration of an event and send it to our servers. Since custom instrumentation is not hooked up to any framework internals you might need to pass along more data if you want event details to show up in AppSignal. This can be a descriptive title, or more specific information like the query from a database call. We already do this for ActiveRecord, Sequel, Redis, MongoDB, Sinatra, Grape, and more.

There are two helpers to allow you to instrument your code with AppSignal.

Ruby

Appsignal.instrument(name, title = nil, body = nil, body_format = Appsignal::EventFormatter::DEFAULT, &block)
# and
Appsignal.instrument_sql(name, title = nil, body = nil, &block)

name argument

The name of the event that will appear in the event tree in AppSignal. Read more about event key naming.

title argument

A more descriptive title of an event, such as "Fetch current user" or "Fetch blog post comments". It will appear next to the event name in the event tree on the performance trace page to provide a little more context on what’s happening.

Ruby

Appsignal.instrument('fetch.custom_database', 'Fetch current user') do
  # ...
end

In collector mode, the event’s span is named after both, as category (title). The example above is recorded as fetch.custom_database (Fetch current user). An event with no title is named after its category alone, and a title that matches the category is not repeated.

body argument

More details such as a database query that was used by the event.

Ruby

sql = 'SELECT * FROM posts ORDER BY created_at DESC LIMIT 1'
Appsignal.instrument('fetch.custom_database', 'Fetch latest post', sql) do
  # ...
end

Warning: Please make sure the body payloads are sanitized (sensitive/dynamic data is removed). Non-sanitized body events will be discarded if they reach a certain limit.

Good:

Ruby

Appsignal.instrument('custom.instrument', 'Instrument stuff', 'command/dynamic/?') do
  # ...
end
Appsignal.instrument('custom.instrument', 'Instrument stuff', 'command/dynamic/?') do
  # ...
end

Bad:

Ruby

Appsignal.instrument('custom.instrument', 'Instrument stuff', 'command/dynamic/123') do
  # ...
end
Appsignal.instrument('custom.instrument', 'Instrument stuff', 'command/dynamic/234') do
  # ...
end

When passing in an SQL query as the body, you can use body_format = Appsignal::EventFormatter::SQL_BODY_FORMAT to do so.

body_format argument

Body format supports formatters to scrub the given data in the body argument to remove any sensitive data from the value. There are currently two supported values for the body_format argument.

Appsignal::EventFormatter::DEFAULT value

The Appsignal::EventFormatter::DEFAULT is the default value of this argument. By default AppSignal will leave the value intact and not scrub any data from it.

Appsignal::EventFormatter::SQL_BODY_FORMAT value

The Appsignal::EventFormatter::SQL_BODY_FORMAT value will run your data through the SQL sanitizer and scrub any values in SQL queries.

We recommend you use the Appsignal.instrument_sql helper for this instead.

SQL

SELECT * FROM users WHERE email = '[e-mail]' AND password = 'iamabot'
-- becomes
SELECT * FROM users WHERE email = ? AND password = ?

ActiveSupport::Notifications

In older versions of the AppSignal gem (1.2 and lower) the Appsignal.instrument is not available. If you cannot upgrade, it’s still possible to use ActiveSupport::Notifications instead. If you don’t want to use the Appsignal.instrument helper, but instead want to use ActiveSupport::Notifications, you can still do so in AppSignal for Ruby gem 1.3 and higher too.

The method for instrumenting your code using ActiveSupport::Notifications is very similar to how AppSignal does it. Using the article fetcher example again you can see the differences are quite small.

Also see our documentation on AppSignal event formatters when using ActiveSupport::Notifications. For more information about ActiveSupport::Notifications instrumentation, see the official Rails ActiveSupport::Notifications documentation.

Ruby

require "active_support"

class ArticleFetcher
  def self.fetch(category)
    ActiveSupport::Notifications.instrument("fetch.article_fetcher") do
      # Download and process the articles
    end
  end
end

ArticleFetcher.fetch("Latest news")

It works for nested instrumentation calls as well.

Ruby

require "active_support"

ActiveSupport::Notifications.instrument("fetch.article_fetcher") do
  10.times do
    ActiveSupport::Notifications.instrument("fetch_single_article.article_fetcher") do
      # Fetch single article
    end
  end
end

ActiveSupport::Notifications is highly flexible, you can instrument your code any way you like. More information about ActiveSupport::Notifications can be found in the Rails API docs.

Warning: We do not track private ActiveSupport::Notifications events that start with an exclamation mark (!). These events mostly include private events generated by Rails.

Dry::Monitor::Notifications

AppSignal records events instrumented through Dry::Monitor::Notifications, the notification system used by the dry-rb libraries and by ROM.

Ruby

require "dry/monitor"

notifications = Dry::Monitor::Notifications.new(:app)

notifications.instrument(:fetch_articles) do
  # Download and process the articles
end

Dry::Monitor reports an event under an ID rather than a name, so AppSignal names the event after its ID followed by .dry. The example above is recorded as a fetch_articles.dry event. An event formatter can give an event a name of its own instead. Read more about how AppSignal uses event names in our event naming guide.
